Product Advantages:

• Acrylic mask, waterproof modules, glue-pouring, and anti-friction design. Equipped with a moisture-resistant respirator.

• Supports interactive and non-interactive modes to fit multiple application scenarios.

• Locking systems and easy brackets allow tool-less assembly for quick deployment.

• Single cabinet modules can be removed and serviced independently.

• Easy pin connection with independent power and signal modules.


Specifications:

Model: TLL-3.9
Pixel Pitch: 3.9 mm
LED Type: SMD1921
Module Resolution: 64 × 64
Module Size: 250 × 250 mm
Cabinet Size: 500 × 500 × 83.5 mm
Cabinet Weight: 8.4 kg
Load Capacity: 2000 kg/m²
Power Consumption: Max 600W/m²
Avg. Power: 220W/m²
Brightness: 2200–3500 nits
Color Temperature: 3000–10000K
Refresh Rate: 2000–3840 Hz
Gray Scale: 16 bit
Viewing Angle: 120° (H) / 120° (V)
Ingress Protection: IP65
Serviceability: Front Service
Control Mode: Synchronous
Lifespan: ≥100,000 hours
Interactive Option: Available

Applications

Interactive showroom floors, car dealership displays, shopping mall visual floors, event venues and stages, museums and exhibits.

Key Features

Handles vehicle loads up to 2000 kg/m². Modular, front-serviceable panel design. Seamless interactive or non-interactive use. Waterproof and anti-slip for rugged environments. Tool-less fast assembly with bracket lock system.

Product Advantages:

• Curved Lock System: Supports concave and convex connections for creative layouts.
• 90° Corner Capability: Optional beveled cabinet allows for seamless 90° corner installations.
• Stack Assembly with Ground Support System: Maximized utility with multifunctional pedestal for stacked or hanging setups.
• Easy Maintenance: Front and rear module maintenance possible with fast-removal design.
• Bottom Gap Protection Design: Prevents contact damage with the floor.
• Corner Protection Design: Built-in protectors secure all 4 corners of the cabinet.

Specifications:

Model: TLL-RDE 2.6RDE 2.8RDE 3.9

Pixel Pitch2.6 mm2.8 mm3.9 mm

LED TypeSMD1515SMD2020SMD2020

Module Resolution96 × 9690 × 9064 × 64

Module Size250×250 mm250×250 mm250×250 mm

Cabinet Size500×500 mm500×500 mm500×500 mm

Cabinet Weight7.4 kg7.4 kg7.4 kg

Brightness800–1000 nits800–1000 nits800–1000 nits

Max Power600W/m²600W/m²600W/m²

Avg Power200W/m²200W/m²200W/m²

Gray Scale16 bits16 bits16 bits

Refresh Rate≥3840 Hz≥3840 Hz≥3840 Hz

Color Temp.3000–10000K3000–10000K3000–10000K

Viewing Angle140° (H/V)140° (H/V)140° (H/V)

IP RatingIP30IP30IP30

Applications:

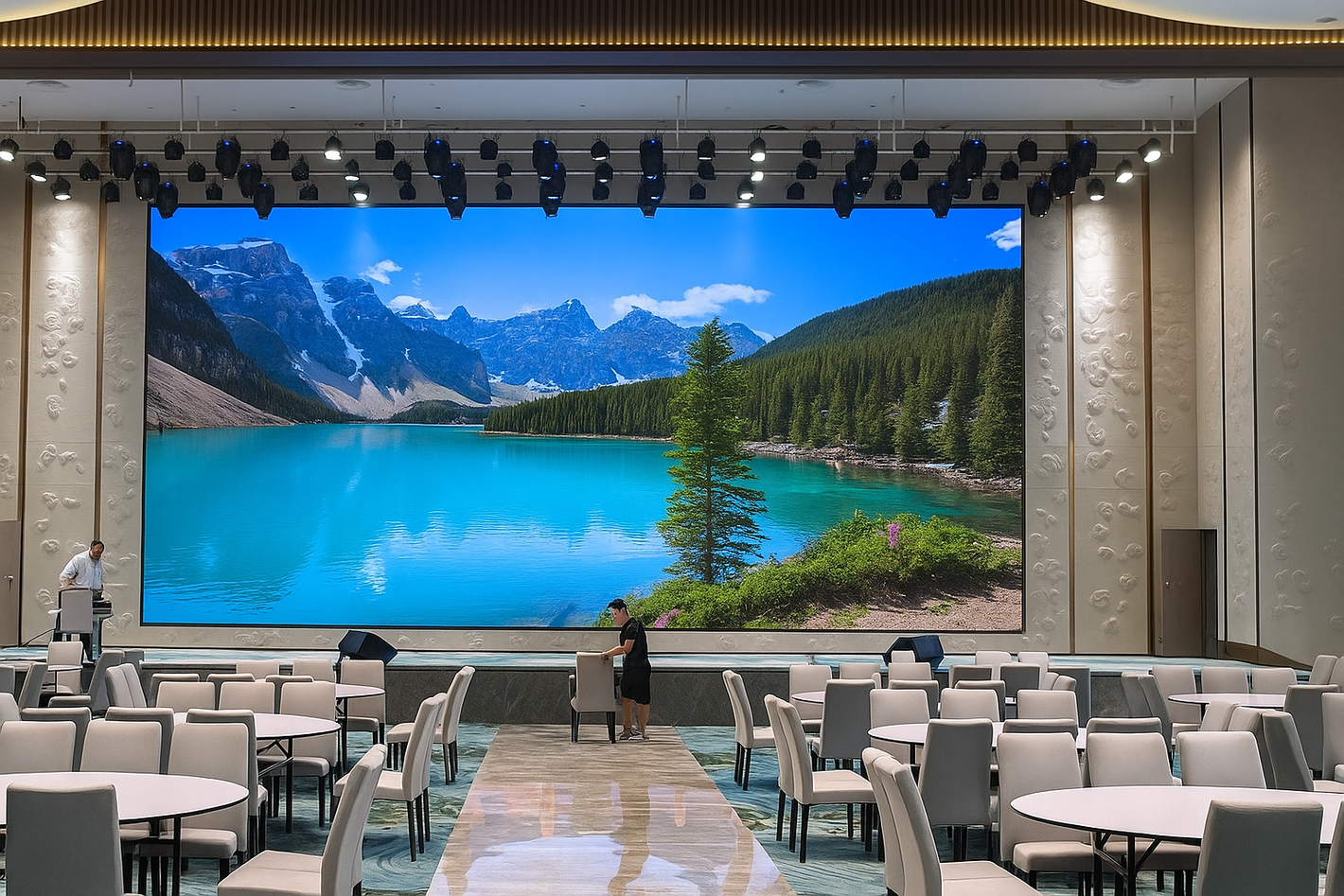

Indoor retail displays, hotel lobbies, conference rooms, control centers, airport signage, churches, live event backdrops.

Key Features:

Ultra-fine 2.6mm pixel pitch for crisp indoor resolution. Lightweight cabinet design enables flexible installation. Cable-free magnetic modules allow for fast front or rear servicing. Supports multiple mounting options including curves and ceilings. High refresh rate and wide viewing angle ensure excellent performance in any setting.
