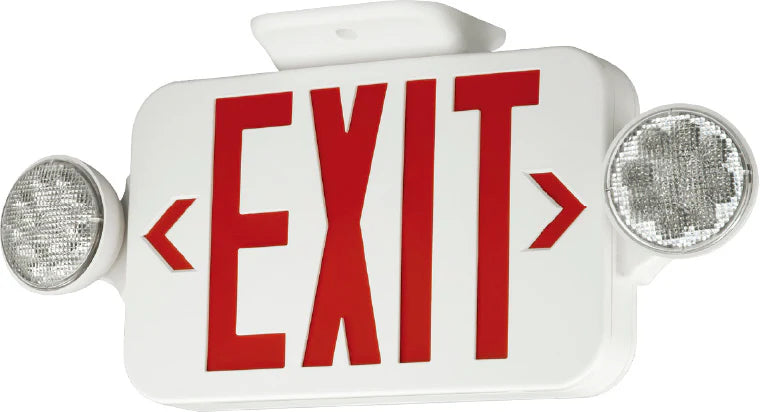

Compact Combination LED Exit Sign RED With Emergency Lights - UL Listed - 5 Year Warranty

All LED Energy-saving combination LED exit sign and emergency lighting unit in one compact, modern design, flexibility and multi-function capabilities All LED Lamp heads.

• Injection-molded, high impact, UL 94 V-0 Thermoplastic
• Snap- together construction speeds installation
• Universal mounting plate with quick-connect feature
• Universal J-box pattern
• Field replacement chevron directional indicator knockouts
• Universal single face and double face (extra faceplate included)
• Fully adjustable glare-free lighting heads
• White housing is standard, with an optional black housing available
• LED expected life is more than 10 years
• Vf (V) for lamp head LED is max. 3.6V, 20mA, max. wattage is 0.072W
• Dual-voltage input 120V or 277V AC operation
• Combo unit includes test switch
• Status indicator lamp
• Maintenance free sealed 3.6V Ni-Cad rechargeable battery which provides 90 minutes of emergency power
• UL 924 listed
• UL indoor damp location listed standard, 68F (20C) to 86F (30C)
• National Electrical Code (NEC)
• Five-year warranty
• CSA Listed
• DOE & CEC Registered
•


  Specification Sheet Click Here
