20ft Area Flood Pole

AVAILABLE FOR LOCAL PICKUP ONLY

SPECIAL OFFERS AVAILABLE FOR BULK PURCHASE | DELIVERY ONLY AVAILABLE FOR BULK PURCHASE|  CALL US FOR MORE DETAILS: (512) 256-9072

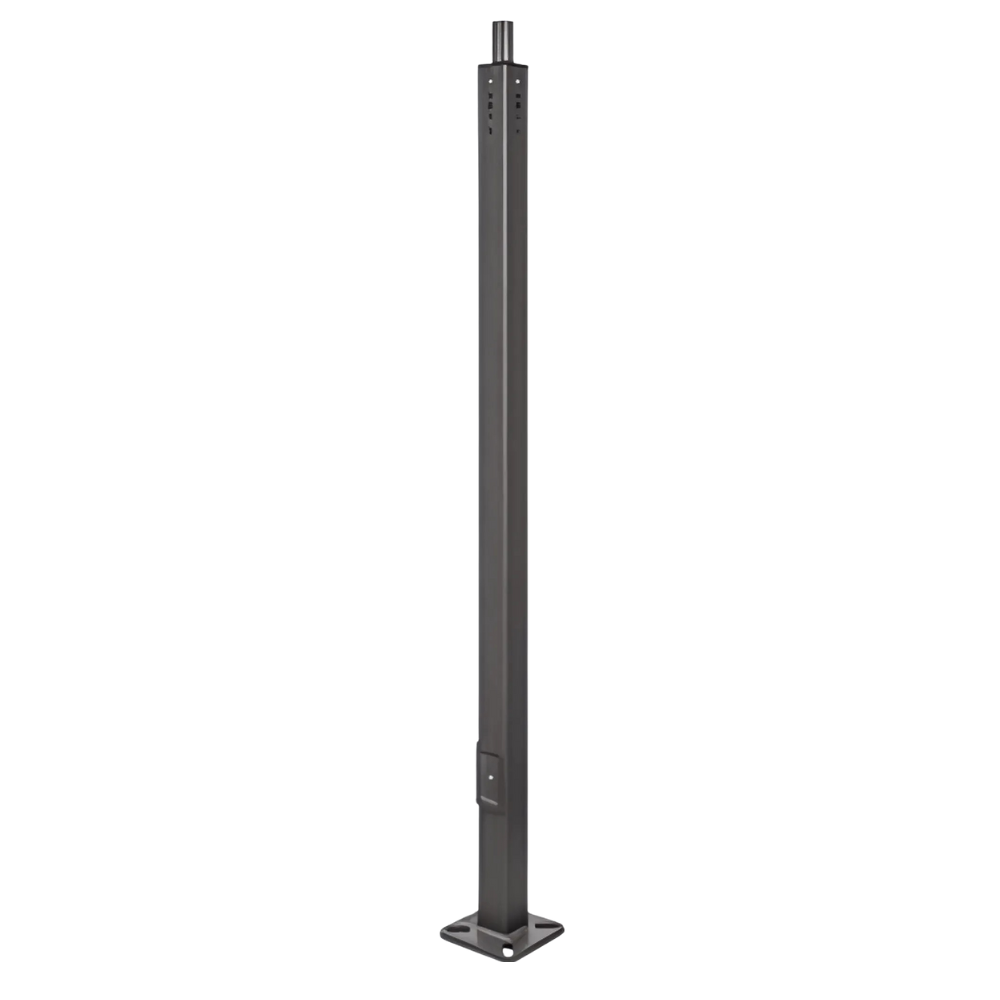

Product Description – 20 FT Steel Light Pole (TLL-POLE)

✅ ASTM A500 Grade B | ✅ Powder-Coated Finish | ✅ Ideal for Area Flood & Post Top Luminaires

The 20 FT Square Steel Light Pole is built from high-strength steel tube and designed for area lighting in commercial lots, public spaces, airports, retail centers, and more. Pre-drilled for arm-mounted luminaires, this pole is perfect for flood and post top lighting systems. Engineered for mounting heights of 10–30 feet, this 20-foot model offers exceptional strength, versatility, and durability for both new and retrofit installations.

Key Features

• Material: High-strength square steel tube
• Height: 20 feet
• Finish: Textured architectural bronze, powder-coated, UV and corrosion resistant
• Yield Strength: Min. 46,000 PSI (ASTM A500 Grade B)
• Hand Hole: Cast iron reinforced, with ground screw
• Mounting Height: Up to 30 ft (recommended: 10–30 ft)
• Mounting Options:
  • 2⅜" top tenon
  • Side-drilled 4@90°
  • Tenon adapters & pole top accessories available

Dimensions & Installation

• Flange Base Dimensions: 11.5" (292mm)
• Anchor Bolt Circle: 8.5" (216mm)
• Pole Length (L): 20 FT (≈ 6.1m)
• Flange Thickness: 0.5"
• Drilling Pattern: 4@90° or custom on request
• Installation: Surface-mounted with anchor bolts (included), polycarbonate top cover, and base cover

Certifications & Warranty

• Standards: Conforms to ASTM A500 Grade B
• Corrosion Resistance: Powder-coated for durability
• Included: Anchor bolts, base cover, hand hole access
• Warranty: Contact for manufacturer warranty details

Applications

• Parking lot lighting
• Street and roadway lighting
• Commercial exterior lighting
• Airports, malls, schools, office campuses
